current location: Home > Product

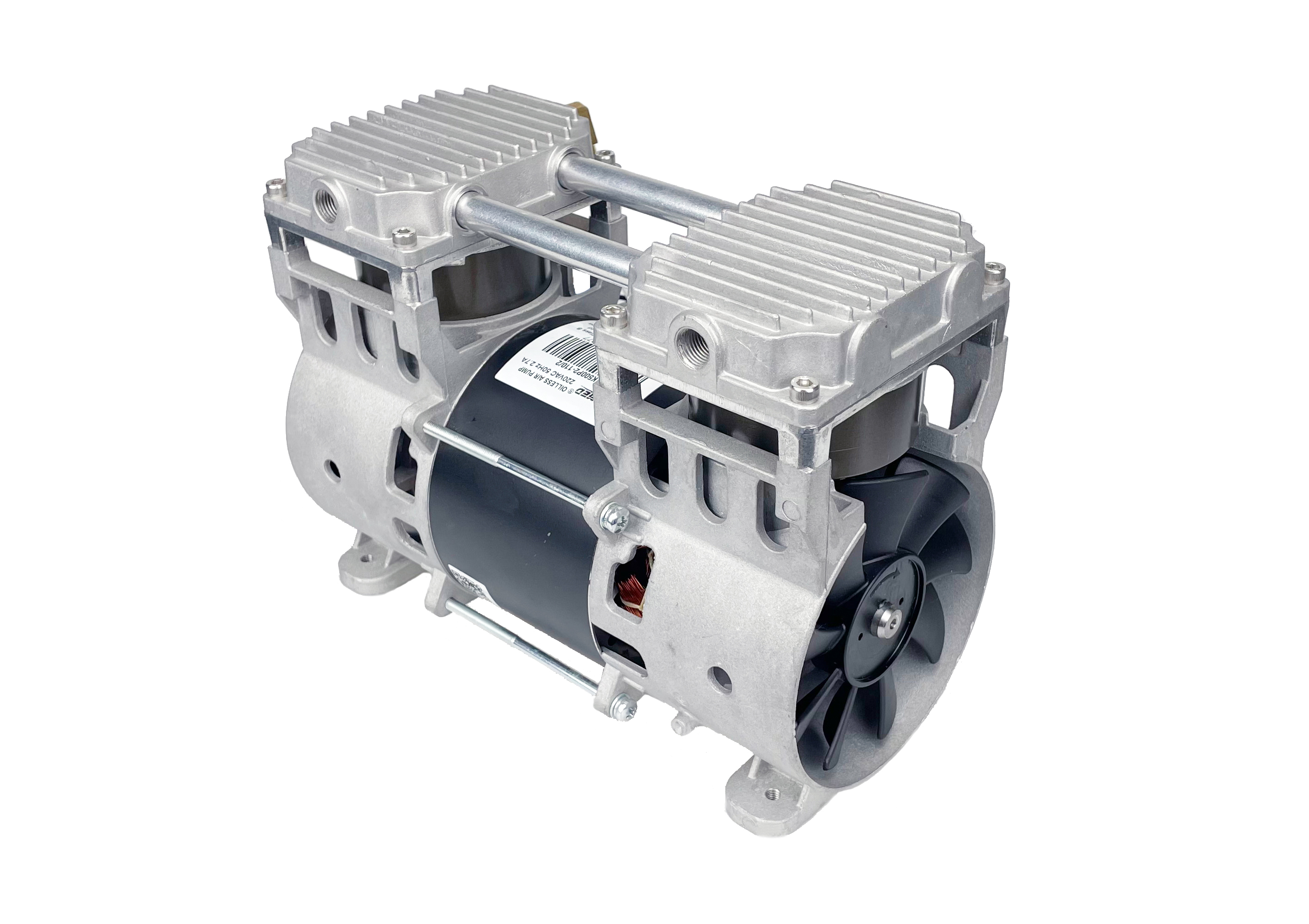

ZGK500P-110/2

ZGK500P series as classic large flow compresded pump lauched in the end of 2017, it is special designed  on seperate type of connecting rod method ,which is more convenient for maintenance. Its performance is more balanced due to its optimized technology on the basis of classic products platform.

Methods and can be made to customer's different voltage and flow performane.

Widely applied in 8L and 10L oxgen concentrator.

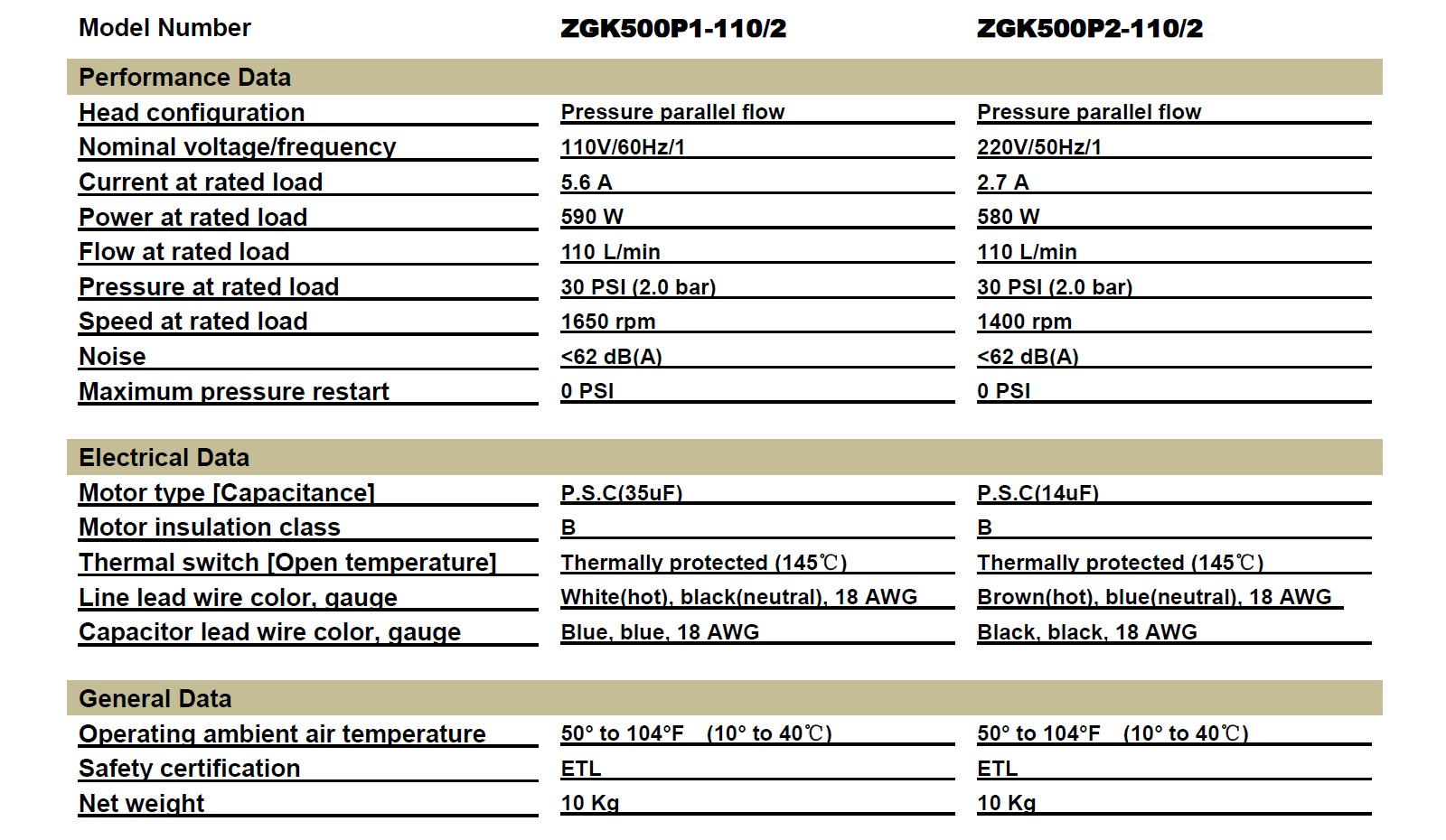

  • Parameter

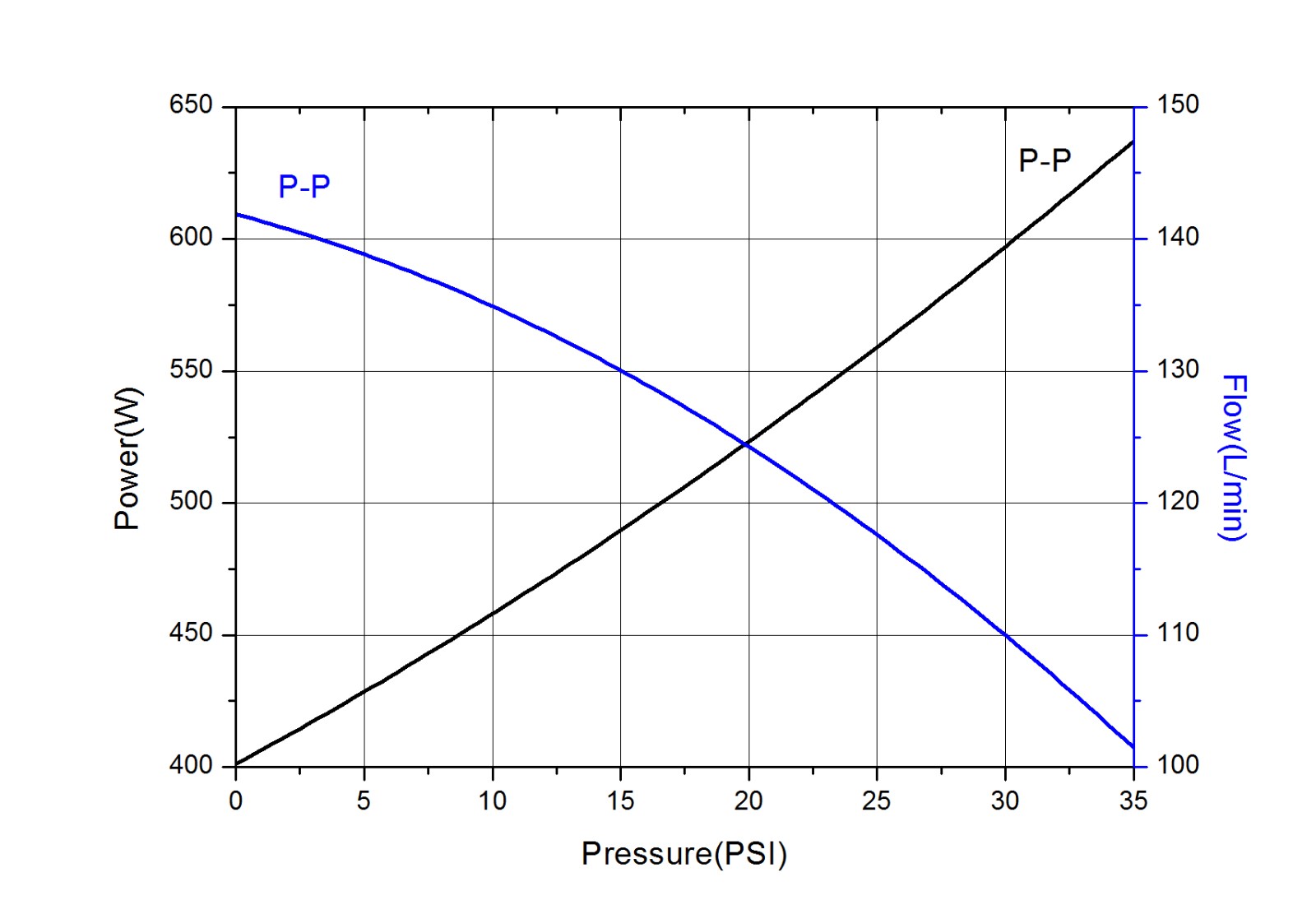

  • Curve

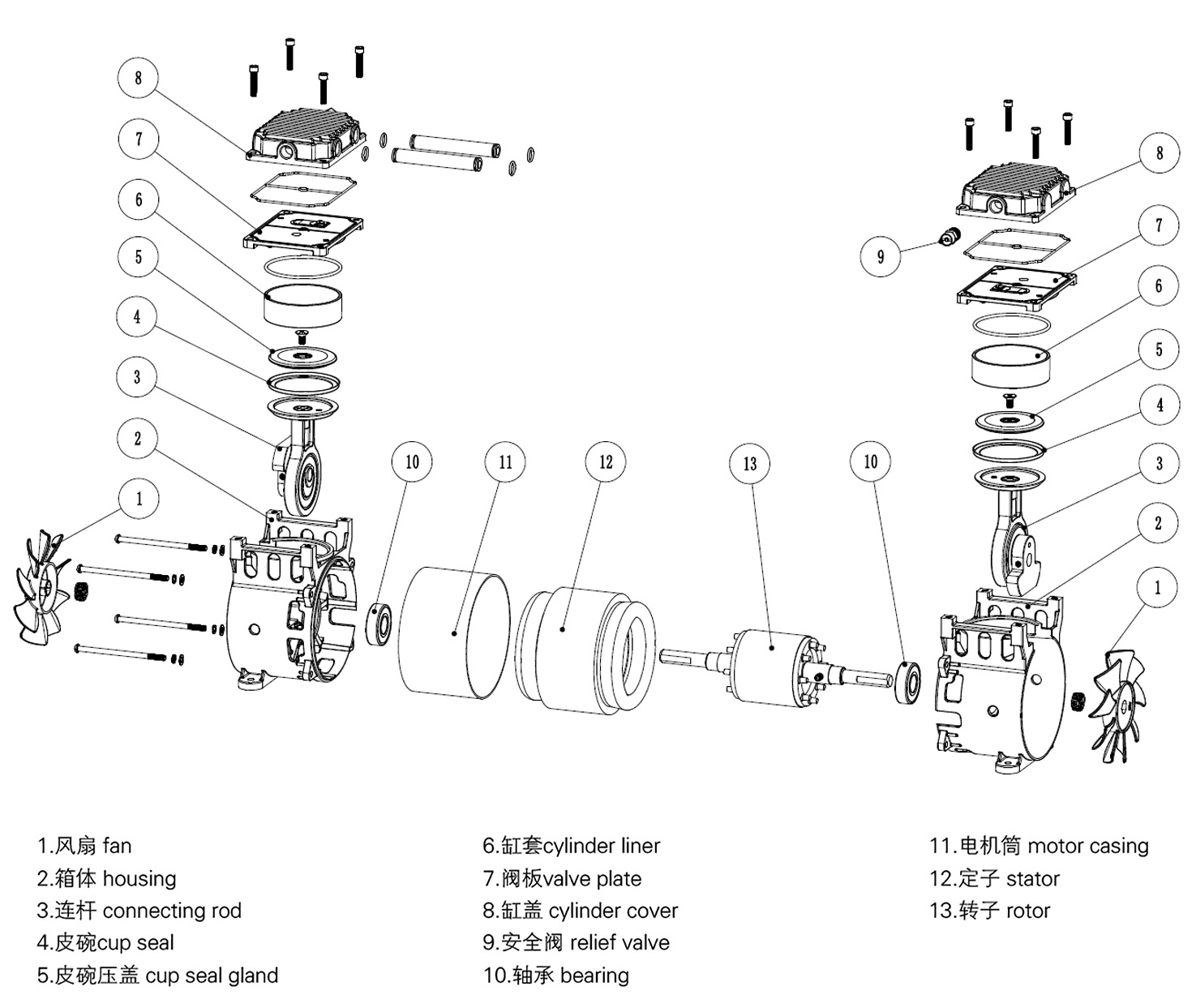

  • Structure

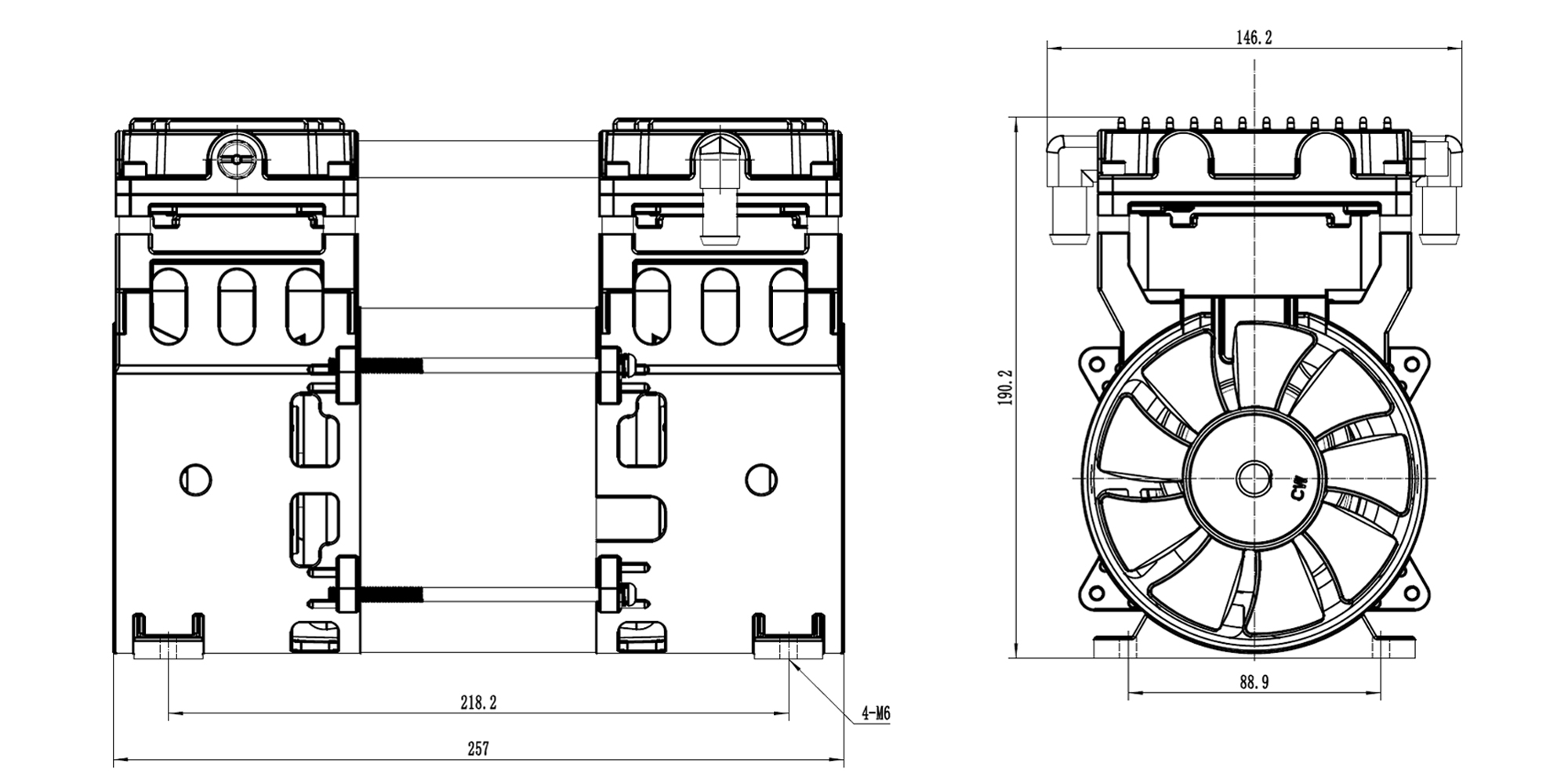

  • Dimensions


Click to enlarge


Click to enlarge


Click to enlarge


Click to enlarge
